Hukx Sensor Manager

Software for digital Hukx solar radiation sensors with a Modbus interface

communication between PC and pyranometers/pyrheliometers
user friendly interface

For digital pyranometers and pyrheliometers

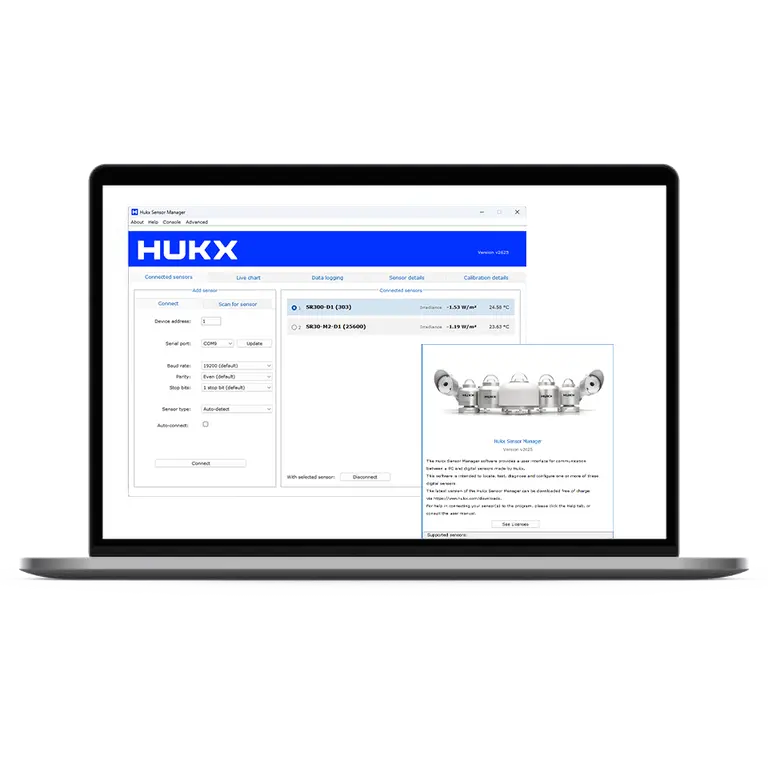

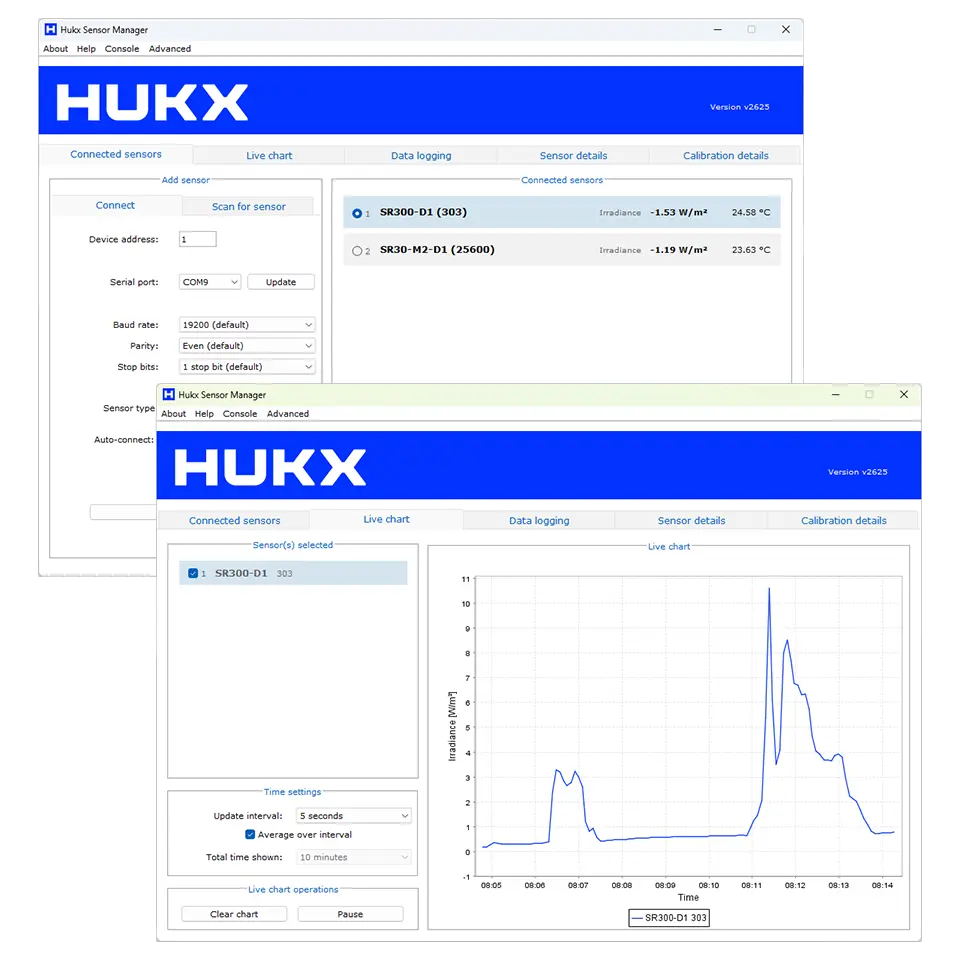

The Hukx Sensor Manager software provides a user interface for communication between a PC and digital Hukx pyranometers and pyrheliometers with a Modbus interface. It allows the user to locate, configure and test one or more sensors and to perform simple laboratory measurements using a PC. The Hukx Sensor Manager’s most common use is for initial functionality testing and setting the sensor’s Modbus address and serial communication settings. It is not intended for long-term continuous measurement purposes.

The Sensor Manager software is offered as a download. For available software updates of the Sensor Manager and other software (e.g. LI19 or CRU02), please see download button below.

Always use the latest version of the software, currently v2625. This version of the Sensor Manager replaces previous versions and can be used for all Hukx digital sensors. Need support in using the software? Please consult the user manual.

Downloads

communication between PC and pyranometers/pyrheliometers
user friendly interface

Specifications

software version	v2625
user manual version	v2629
supported operating systems	Microsoft Windows 10 and 11 (no separate Java Runtime installation required)
supported sensors	SR300-D1, SR200-D1, SR100-D1, SRD100-D1, SR30-M2-D1, SR20-D2, SR05-D1A3, SR15-D1, SR05-D2A2, SR15-D2A2, SR05-DA1, SR05-DA2, SR20-D1, SR22-D2, SR25-D1, SR25-D2, SR30-D1, DR30-D1, Generic Modbus RTU, Virtual SR300-D1
communication protocol	Modbus RTU
hardware interface	serial port (COM port), for example a USB port or RS-232 port and a serial converter and software driver
availability	free of charge, offered as a download

Would you like a personalised quote?

Let's talk about your project and the performance data you need. We are here to guide you to the right solution.

Get in touch

Modbus

Digital Hukx solar radiation sensors with a Modbus RTU interface can be accessed via a PC. The communication with the sensor can be done via the user interface offered by the Hukx Sensor Manager software or by another Modbus RTU compatible tool. The Hukx Sensor Manager is offered free of charge as a download. Links to other Modbus tools, paid or freeware, are available at www.modbus.org

This support page, and the accompanying user manual, describes the functionality of the Hukx Sensor Manager version v2625 only. For best performance and support always use the latest version of the software.

Modbus® is a registered trademark of Schneider Electric, licensed to the Modbus Organization, Inc.

Suggested use

User interface for communication between a PC and:

digital Hukx pyranometers
digital Hukx pyrheliometers

Most common use is for initial functionality testing and setting the sensor’s Modbus address and serial communication settings. It is not intended for long-term continuous measurement purposes.
