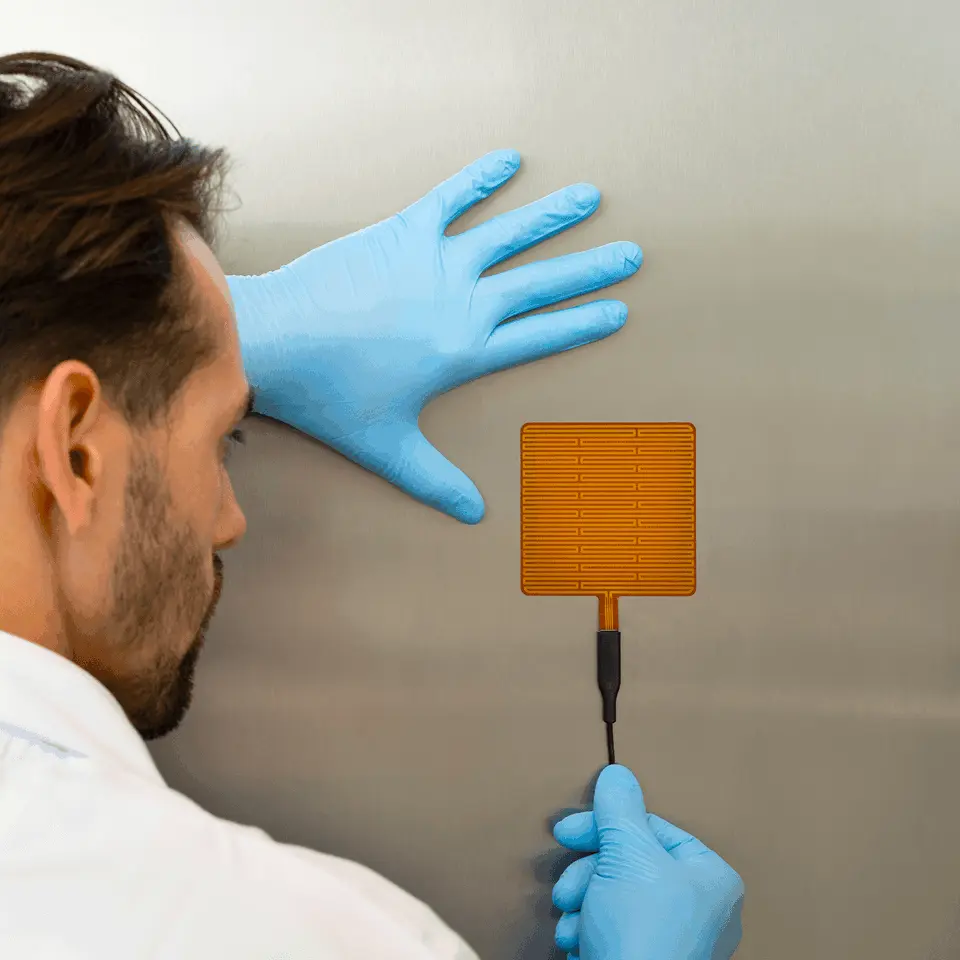

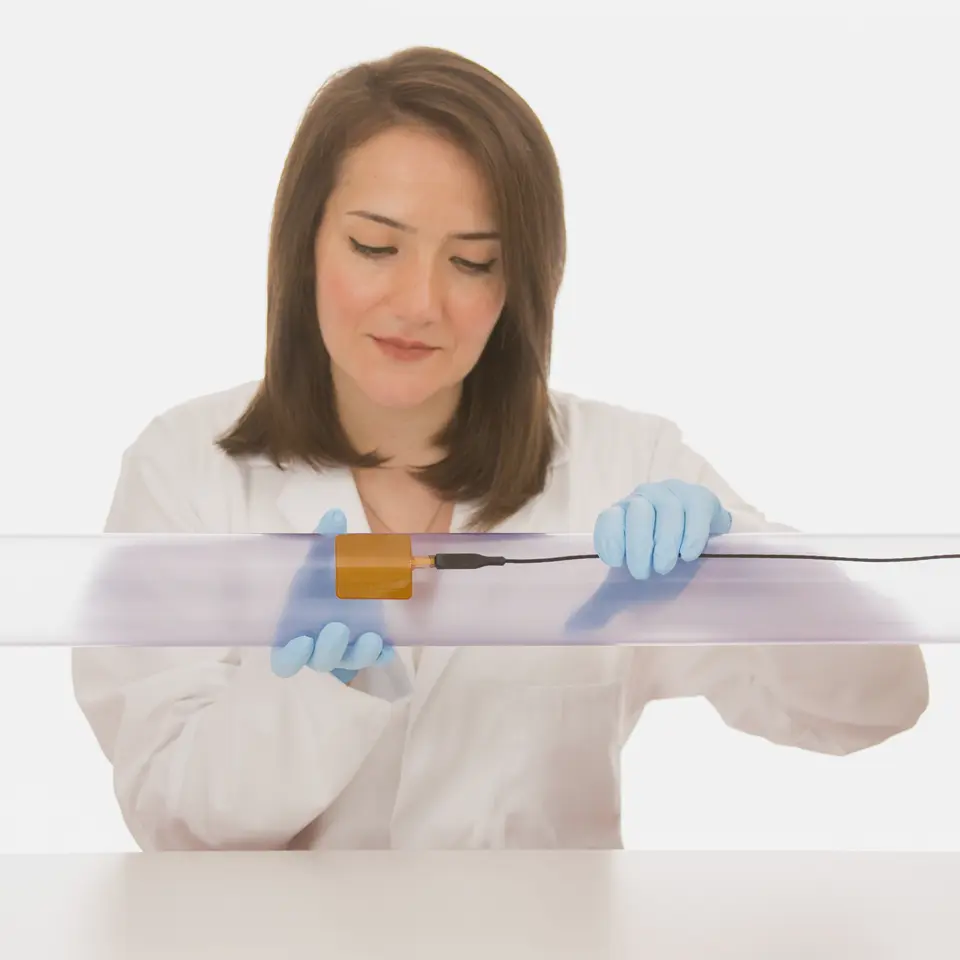

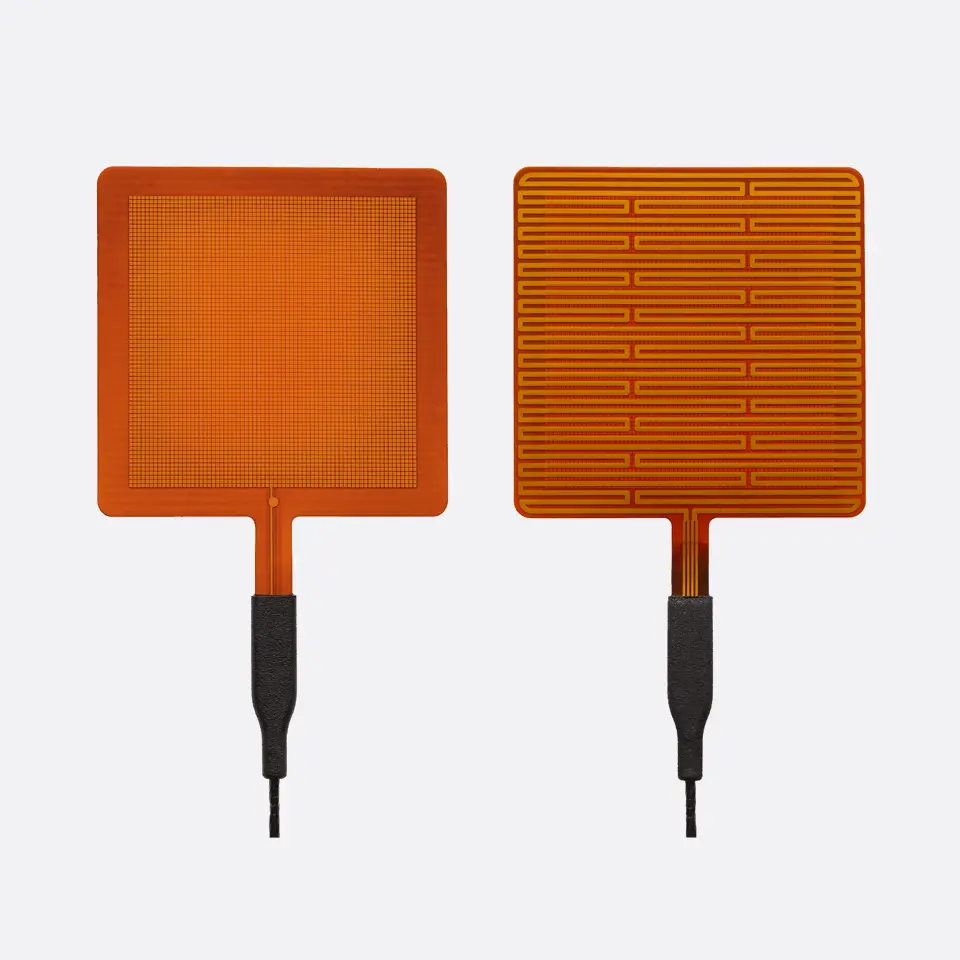

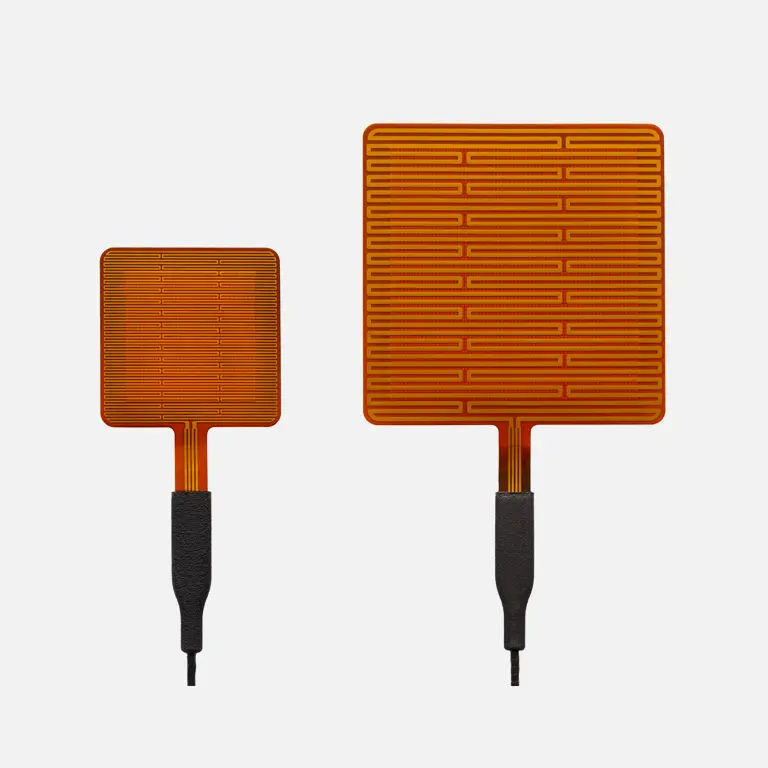

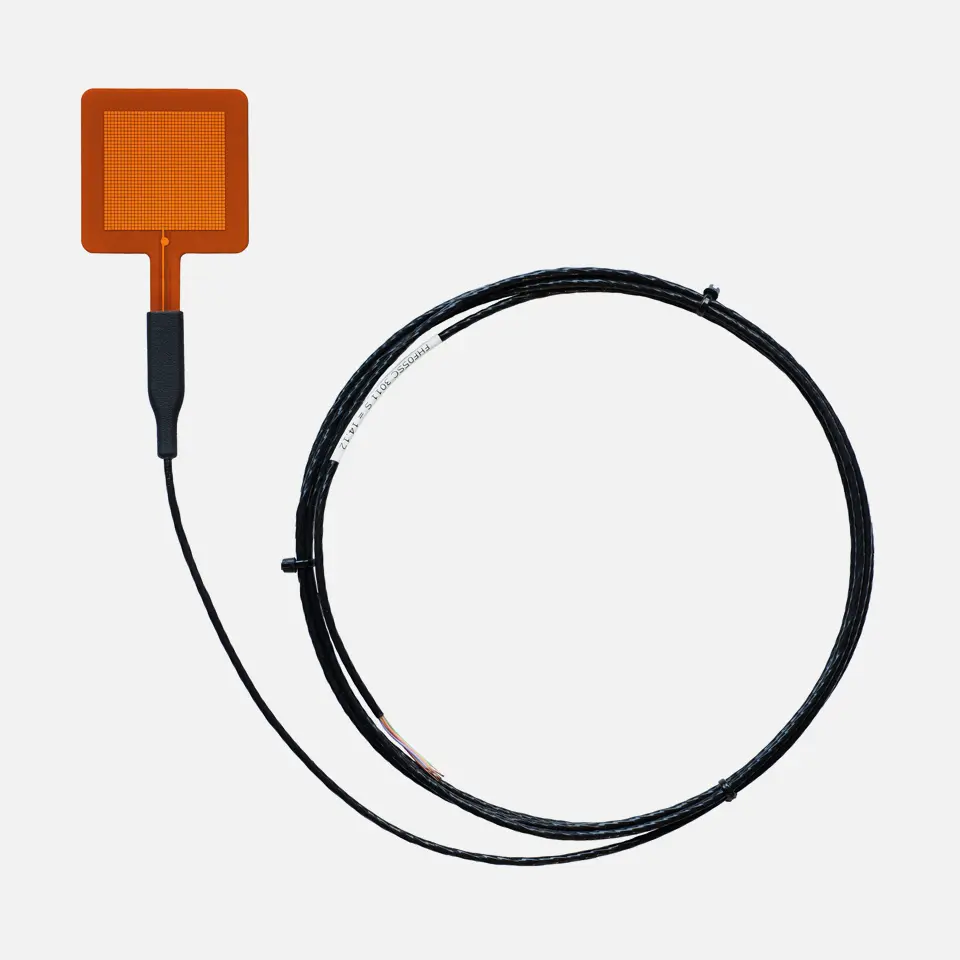

FHF05SC series

Heat flux sensors measure energy flux onto or through a surface in [W/m²].
The source of the heat flux may be:

• conduction
• radiation
• convection

Convective and conductive heat transfer are associated with a temperature difference. Heat always flows from a source to a sink, from a hot to a cold environment. Convective and conductive heat flux is measured by letting this heat flow through the sensor. Radiative flux is measured using heat flux sensors with black absorbers. The absorbers converts radiative to conductive energy. Hukx started in 1993 with sensors for measurement of heat flux in soils and on walls. In the course of the years, we have added specialized sensors and systems for many other applications.

Heat flux sensors manufactured by Hukx are optimized for the demands of different applications:

• rated temperature range
• rated heat flux range
• sensitivity
• response time
• chemical resistance, safety requirements
• size, shape and spectral properties

Hukx is the world market leader in heat flux measurement. We have prepared a white paper briefly explaining the fundamentals of measuring with heat flux sensors. It also offers general directions about what to watch out for and some, perhaps surprising, applications of heat flux sensors. Take a look at our white papers.

• Representativeness in time and space; average!
  A heat flux sensor measures at a certain location. Is this location representative of what you need to measure? If possible, use a relatively large sensor, rather than a small one, and consider use of multiple sensors. Thermal processes often have large time constants; instantaneous measurements may be misleading. Average to get the full picture.
• Optical properties
  When heat flux sensors also measure radiation, pay attention to the surface color. If needed paint the sensor surface. Please remember that shiny metallic surfaces reflect both infrared and visible radiation. Paints may have different colors in the visible range, but are usually “black” absorbers in the far infrared.
• Sensor thermal resistance
  A heat flux sensor distorts the local heat flux. In order to minimize this effect, use the sensor with the lowest possible thermal resistance.
• Edge effects
  A heat flux sensor locally distorts the heat flow pattern, in particular around the edges of the sensor. A passive guard, i.e. a non-sensitive part around the sensor, is essential to avoid errors due to edge effects.

There are more characteristics that matter. Please find them in our white paper on heat flux fundamentals and applications, You may also take a look at our note on How to install a heat flux sensor for tips & tricks.

Hukx manufactures a range of sensors for surface energy flux measurements. All have proven reliability.
These state-of-the-art sensors are made for the global fluxnet community:

• NR01 is a market leading 4-component net radiometer.
• HFP01 and HFP01SC measure soil heat flux.
• STP01 offers an accurate temperature profile measurement.
• TP01 is the leading sensor for soil thermal conductivity.

Sensors made by Hukx are designed for compatibility with most common data logger models. For many models we have example programs and wiring diagrams available.

On-site measurements of thermal resistance, R, are often applied in studies of buildings. Alternatives are to measure its inverse value, the thermal conductance which is called the Λ-value, or the thermal transmittance which includes ambient air boundary layer thermal resistance, the U-value. The measurements of R are based on simultaneous time averaged measurement of heat flux Φ and differential temperature, ΔT, (using two temperature sensors on each on a different side of the wall).

R = ΔT/Φ

Hukx provides a range of sensors and measuring systems for use in measurement of the energy budget of buildings and characterization of construction materials.

HFP01 heat flux sensor and TRSYS20 measuring system are widely used for on-site measurements on walls, windows and other construction elements in building physics.

• HFP01 can be used for in-situ measurement of building envelope thermal resistance (R-value) and thermal transmittance (H-value) according to ISO 9869, ASTM C1046 and ASTM 1155 standards. HFP01 is the world’s most popular sensor for heat flux measurement in the soil as well as through walls and building envelopes. HFP01 measures heat flux through the object in which it is incorporated or on which it is mounted, in W/m². More information? Visit the HFP01 product page.
• TRSYS20 is a high-accuracy system for on-site measurement of thermal resistance, R, thermal conductance, the Λ-value, and thermal transmittance, the U-value, of building envelopes. TRSYS20 is mostly used for measurements according to standard practices of ISO 9869 and ASTM C1155 / C1046. The system is equipped with high-accuracy electronics, two heat flux sensors of model HFP01 as well as two pairs of matched thermocouples. The two measurement locations provide redundancy, leading to a high level of confidence in the measurement result. The high accuracy of the heat flux sensors and temperature difference measurements ensures that TRSYS20 continues measuring when other systems no longer perform, in particular at very low temperature differences across the wall.

Hukx, market leader in heat flux measurement, offers both sensors and systems.

These measuring systems typically include a Measurement and Control Unit and one or more sensors for measuring heat flux as well as other measurands, such as temperature and humidity. Examples are the TCOMSYS01 Hot Cube thermal comfort measuring system, including a TCOM01 sensor, and the TRSYS01 measuring system, incorporating two HFP01 heat flux sensors and two pairs of matched thermocouples.

'Sensors only' can be found here. Complete measuring systems are displayed here, on a separate page.

Cannot find what you are looking for? Please contact us.
