Name: PVMT01 | Temperature sensor for back-of-module PV
Availability: InStock

PV module temperature sensor, Pt1000 Class A, for back-of-module temperature measurement

Request a quote

Ask your question

high-accuracy
Pt1000 Class A
IP67 protection
analog output

PV module temperature sensor for back-of-module temperature measurement

PVMT01 is a high-accuracy back-of-module temperature sensor designed to assess PV system performance. PVMT01 allows you to estimate and correct the performance index for the temperature dependence of module efficiency. The sensor meets the requirements of the highest-class systems for PV monitoring: IEC 61724-1 Class A. IEC suggests 3 sensors per monitoring station and requires 6 or more sensors on a PV system, depending on the system size. PVMT01 includes a Pt1000 platinum resistance thermometer in a small anodized aluminum disk and a thin, flexible 1 m cable with a connector. You can easily extend the cable using a cable with a matching connector.

high-accuracy
Pt1000 Class A
IP67 protection
analog output

Specifications

Temperature sensor	:
measurand	back-of-module
sensor type	temperature Pt1000 Class A platinum resistance thermometer (PRT)
sensor connection	4-wire
sensor housing	aluminium disk
Rated operating temperature range	:
sensor and cable	-40 °C to +150 °C
connector	-40 °C to + 80 °C

All specifications

Temperature sensor	:
measurand	back-of-module
sensor type	temperature Pt1000 Class A platinum resistance thermometer (PRT)
sensor connection	4-wire
sensor housing	aluminium disk
Rated operating temperature range	:
sensor and cable	-40 °C to +150 °C
connector	-40 °C to + 80 °C
measurement accuracy	± (0.15 + 0.002∙T) °C
Compliance	:
compliance	IEC 61724-1: 2021, Class A
number of sensors required	3 per monitoring station required, minimum 6 per PV system, depending on the size of the system, as per IEC 61724-1
IP protection class	IP67
Aluminum disk	:
disk material	anodized aluminum
disk diameter	25 x 10⁻³ m
disk thickness	5.5 x 10⁻³ m
insulation resistance	> 2 GΩ at 1 kV as per IEC 60060-1
Adhesive	:
adhesive material	acrylic sticker
adhesive thickness	0.13 × 10⁻³ m
total heat transfer coefficient	> 500 W/(m²∙K), as required in IEC 61724-1
Cable & connector	:
cable length	1 m
cable extension	to preferred length, can be extended by the user
cable diameter	2.5 × 10⁻³ m
connector type	4P, male M12-A connector
cable connector	4P or 5P female M12-A connector

Interested in this product?

Let's talk about your project and the performance data you need. We are here to guide you to the right solution.

Get in touch

PVMT01: critical for PV system performance assessment

PVMT01 measures the temperature of a PV module. When assessing PV system performance, PVMT01 allows users to estimate and correct for the temperature dependence of module efficiency. PVMT01 meets or exceeds the strictest specifications for PV monitoring, as required by IEC 61724-1 for Class A systems.

PVMT01 consists of a Pt1000 Class A, connected in a 4-wire configuration for increased accuracy. The sensor is enclosed in a small anodized aluminum disk to minimize the impact on bifacial modules (IEC requires obscuring less than 10 % of the surface area of any cell). The adhesive on the sensor disk is specified for long-term outdoor use and has excellent thermal properties, including a total heat transfer coefficient larger than 500 W/(m²∙K), as required by IEC.

The weather-proof cable has a very small diameter, which improves measurement accuracy. The cable is also flexible, which minimizes the mechanical stress on the adhesive bond of the sensor disk to the module. PVMT01 comes with a standard cable length of 1 m, which can easily be extended using an extension cable with a matching connector. For bifacial modules, this cable should be routed between the cells, as recommended by IEC.

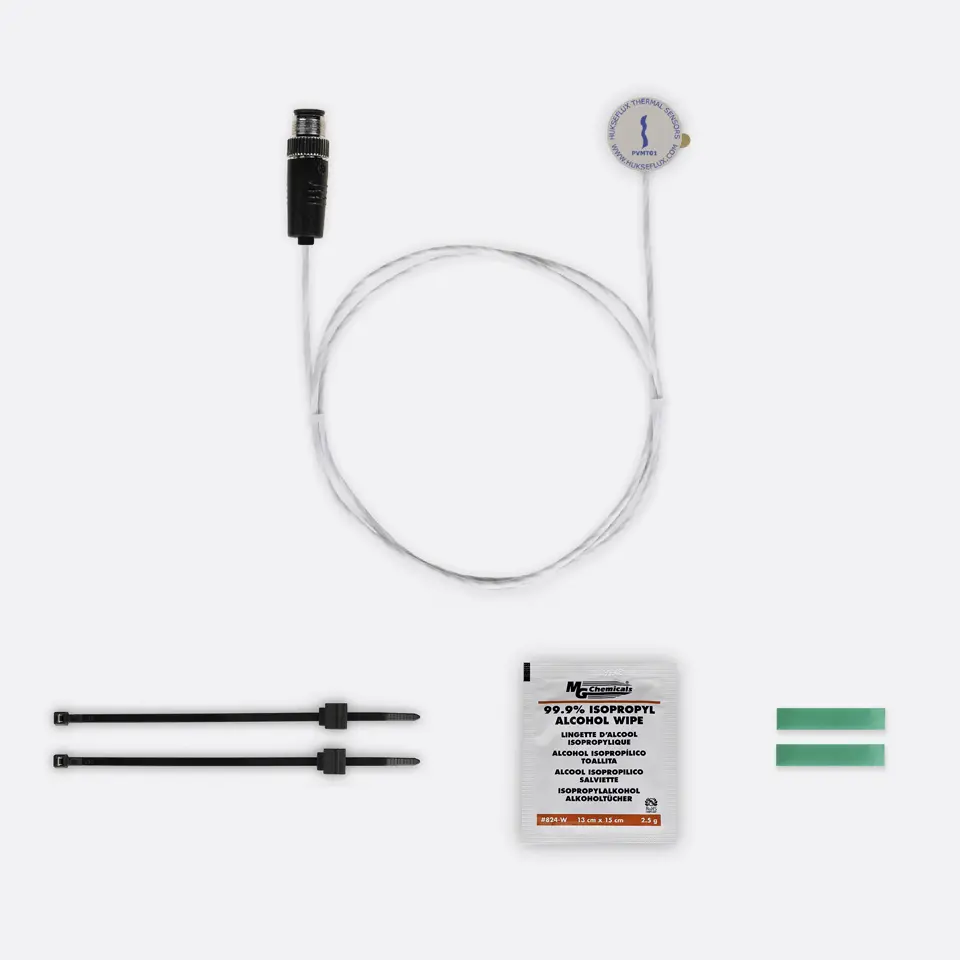

PVMT01 is supplied in packs of ten sensors. Each sensor comes with a cleaning alcohol wipe, two polyester tapes, and two solar edge clips to attach the cable to the edge of the PV module.

Unique features and benefits

high measurement accuracy
compliant with IEC 61724-1 requirements for Class A systems
disk adhesive rated for prolonged outdoor use
small surface area to minimize impact on bifacial modules
thin cable for routing between cells of bifacial modules
flexible, small diameter cable minimizes mechanical stress on the adhesive connecting the sensor to the module
easily extendable cable
ingress protection class: IP67

Easy installation

Installing PVMT01 is simple. The adhesive on the back of the disk is extremely strong and weather-resistant. To ensure the best bond, an IPA (isopropyl alcohol) wipe is provided to clean the surface of the panel before attachment.

Mount the sensor on the rear side of the module. IEC 61724-1 recommends selecting a location at the center of a cell, close to the center of the module. IEC requires a minimum of 3 sensors for every monitoring station and a total of 6 or more sensors per PV system, depending on the size of the system.
